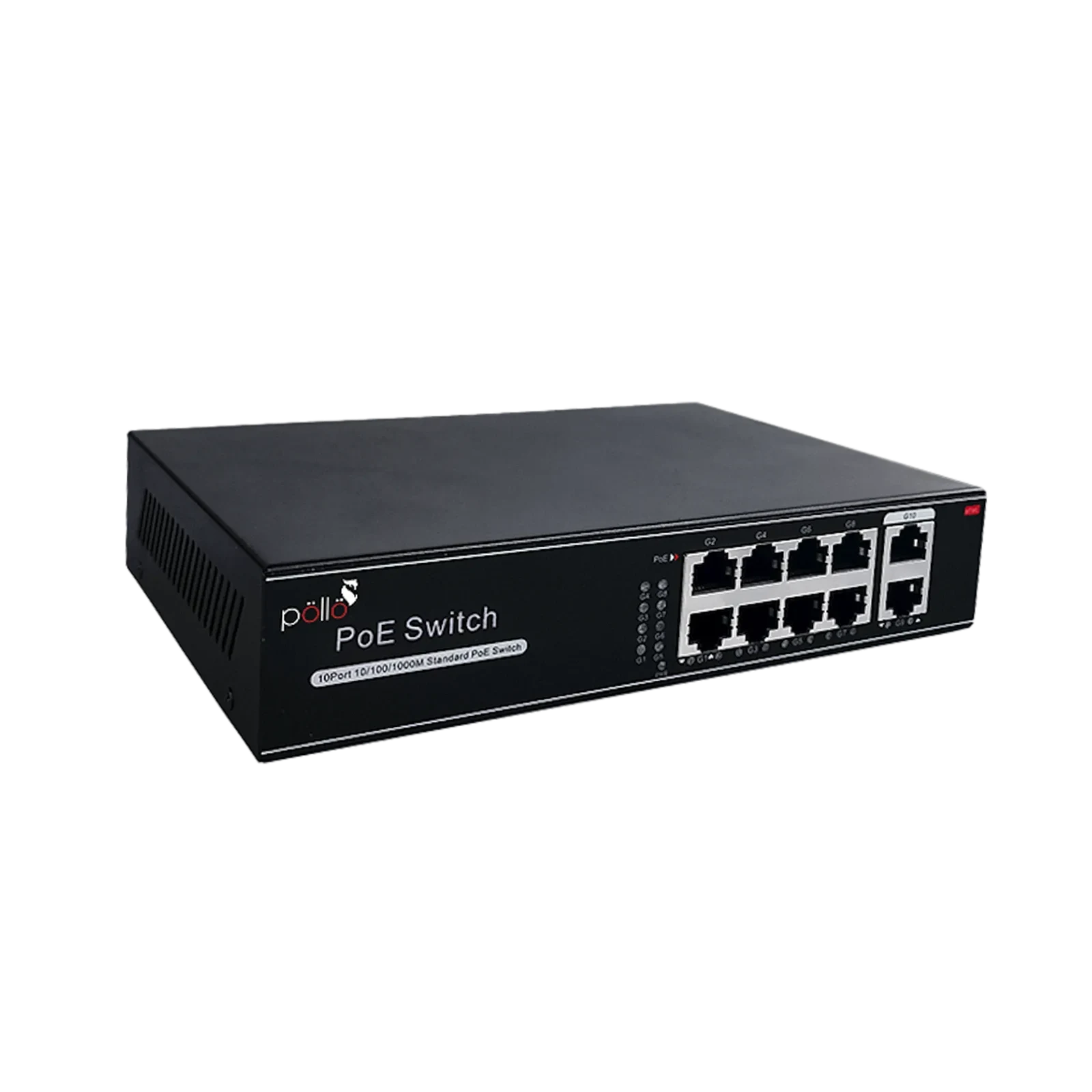

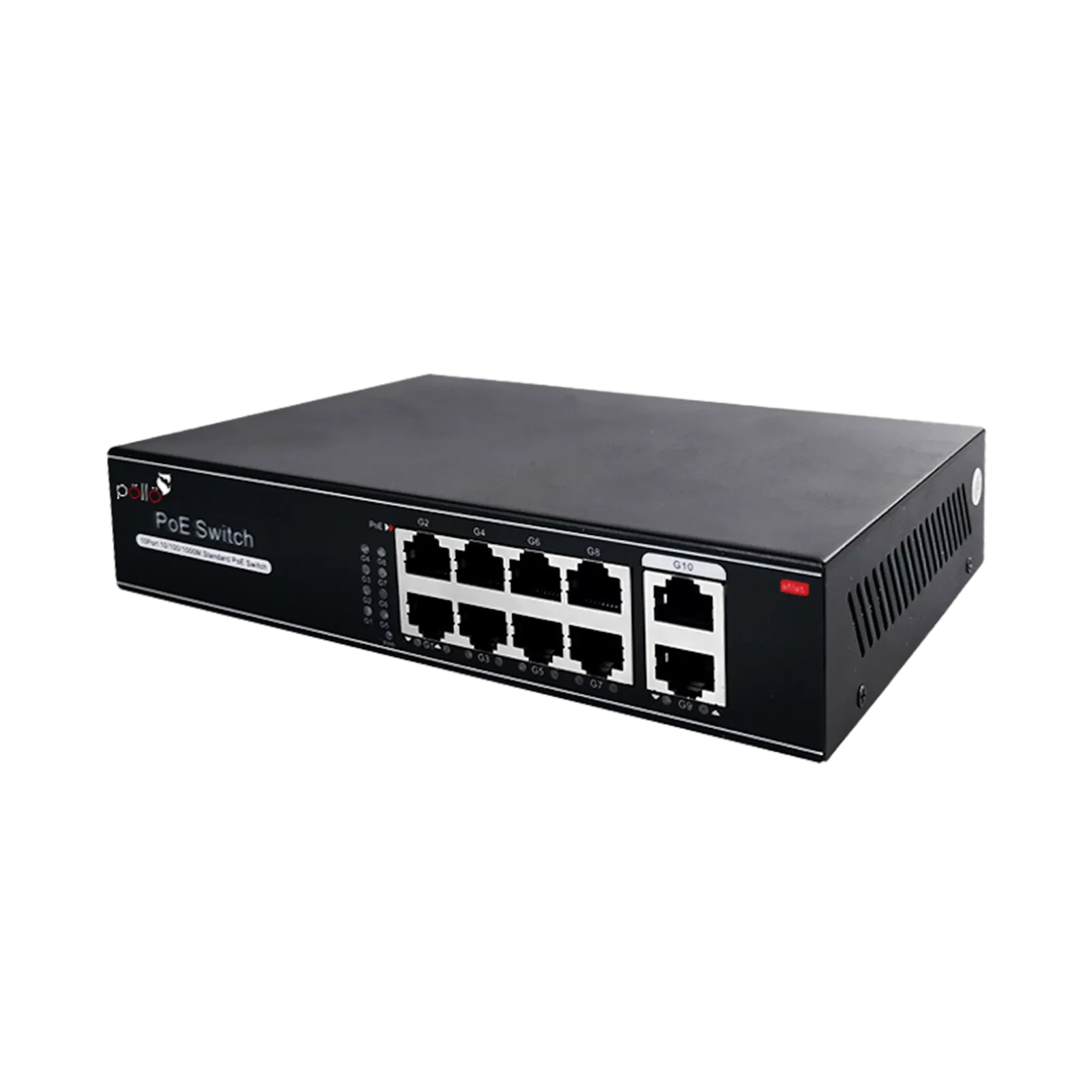

10-Port Gigabit PoE Network Switch

• 8 × Gigabit PoE ports (10/100/1000Base-T) for data & power
• 2 × Gigabit uplink RJ45 ports (10/100/1000Base-T)
• Auto-sensing ports with MDI/MDI-X self-adaptation, full/half duplex
• Supports Cat3–Cat5e UTP, transmission distance up to 100 m
• Compliant with IEEE 802.3 / 802.3u / 802.3ab / 802.3x standards
• Store-and-Forward switching, full wire-speed performance
• 20 Gbps non-blocking switching capacity
• 14.88 Mpps forwarding rate @64-byte packets
• 2K MAC address table, 2 MB buffer memory
• Supports 9.2K jumbo frames
• IEEE 802.3af/at PoE on ports 1–8
• 30 W max per PoE port, 120 W total PoE budget

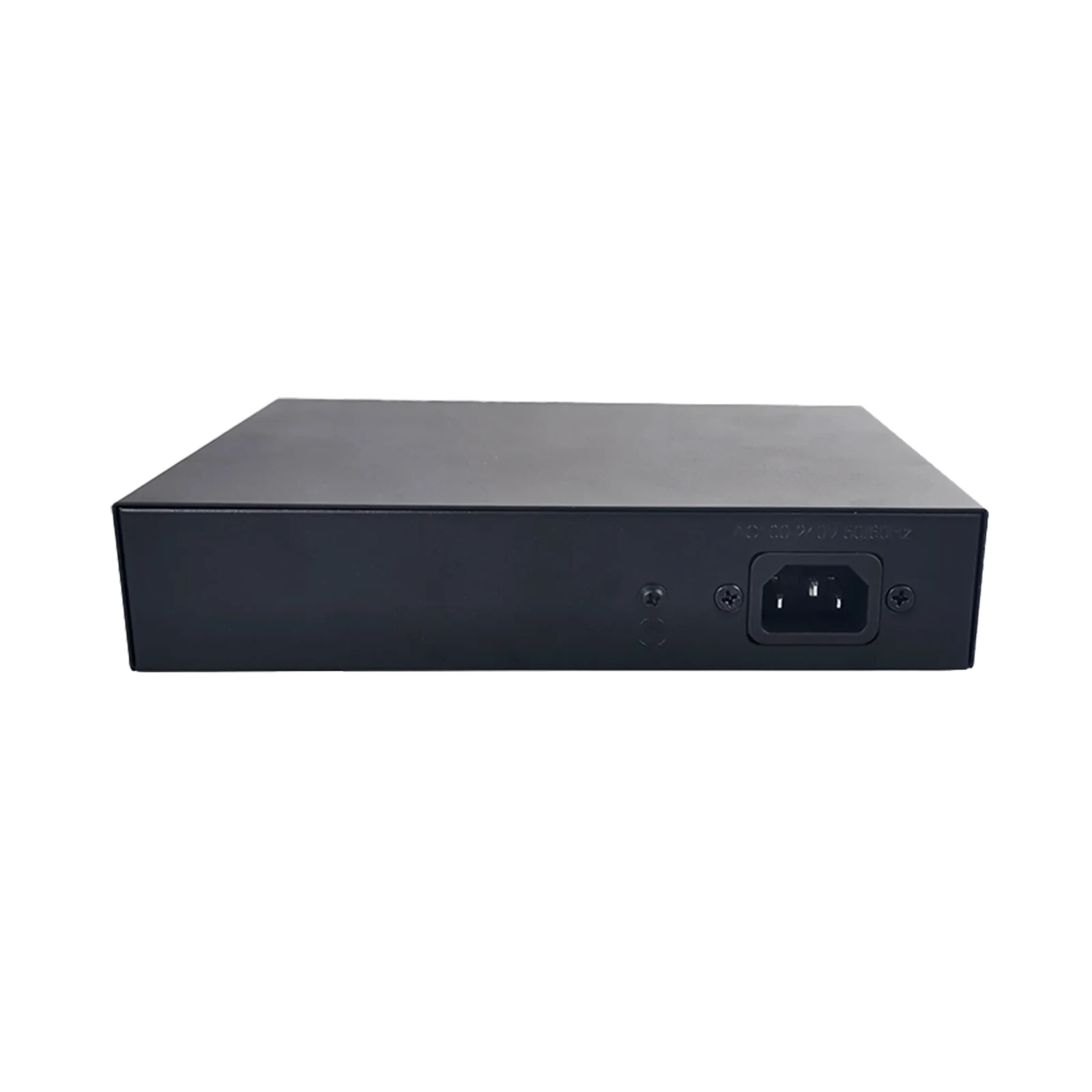

• Built-in AC power supply (100–240 V, 50/60 Hz)
• Low power consumption: <6 W standby, <120 W full load
• LED indicators for Power, Link, and PoE status
• Supports desktop and wall-mount installation
• 4KV lightning protection, IP30 protection level
• Certified: CCC, CE, FCC, RoHS
