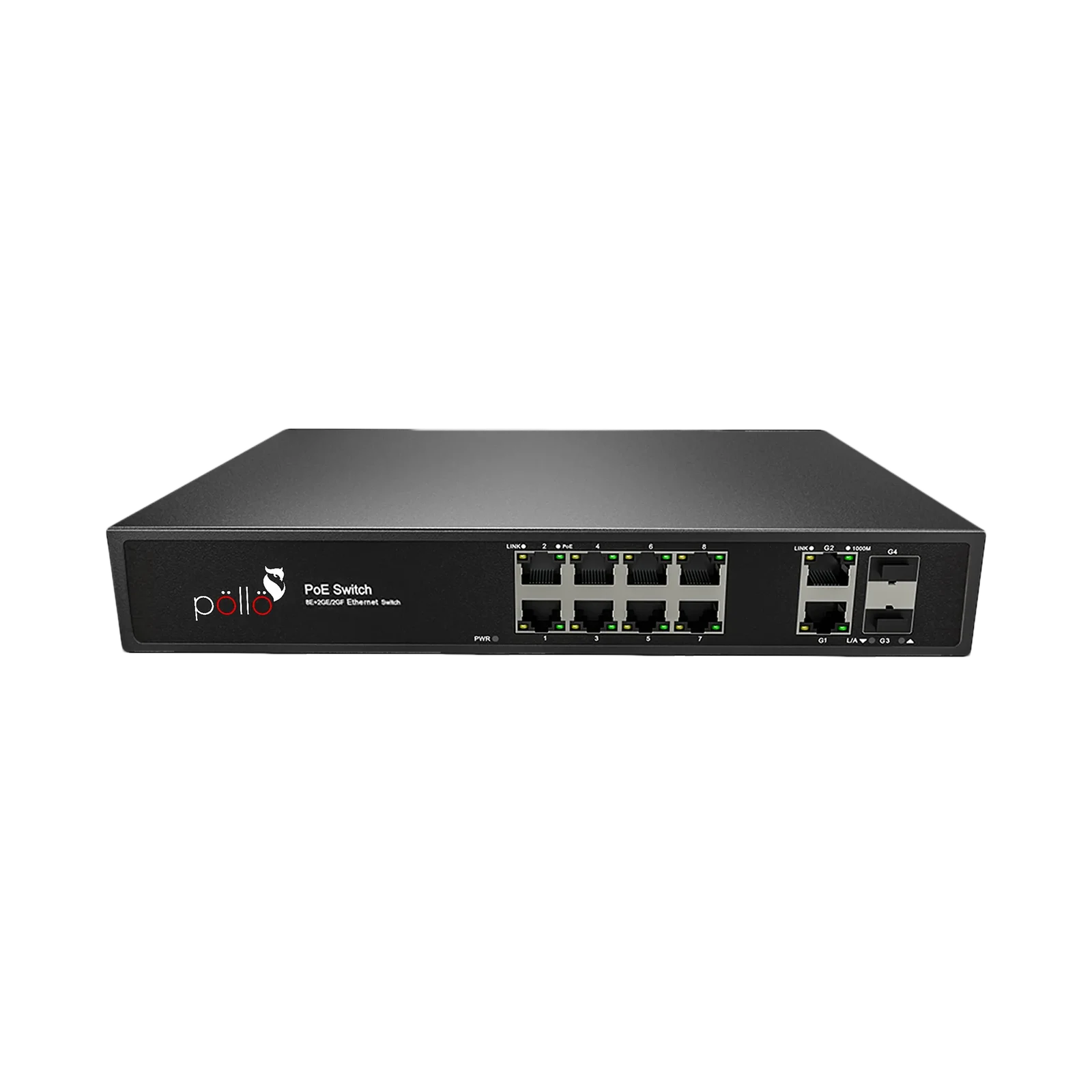

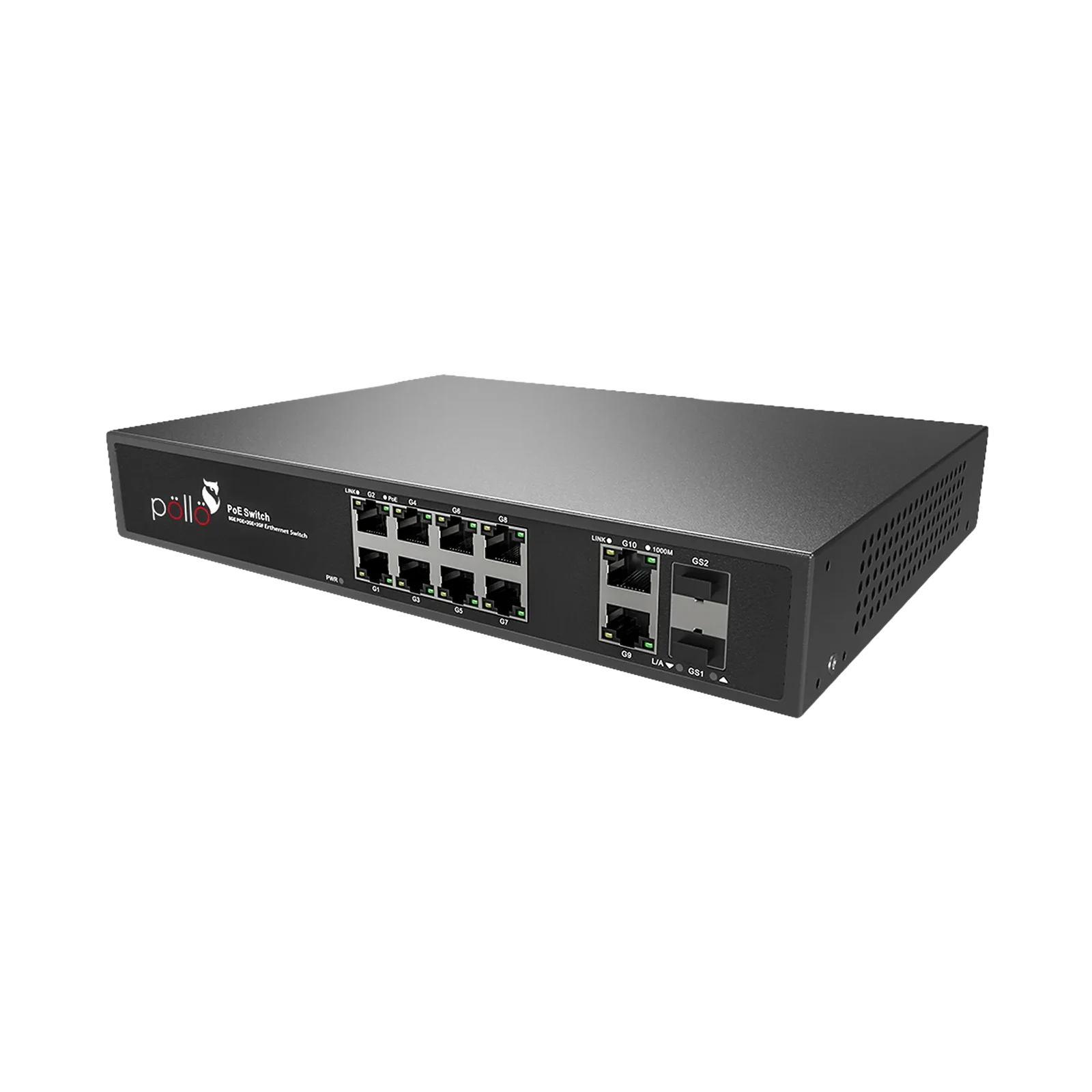

12-Port Gigabit PoE Network Switch with Gigabit Uplink & 2 SFP

• 8 × Gigabit PoE ports (10/100/1000Base-T) for data and power
• 2 × Gigabit RJ45 uplink ports
• 2 × Gigabit SFP fiber uplink ports
• Auto-sensing ports with full/half-duplex and MDI/MDI-X support
• Supports Cat3–Cat5e UTP cabling up to 100 m
• SFP ports support single-mode and multi-mode fiber (optional modules)
• Fiber transmission up to 120 km depending on SFP module
• Compliant with IEEE 802.3 / 802.3u / 802.3ab / 802.3z / 802.3x standards
• Store-and-forward switching with full wire-speed performance
• 24 Gbps non-blocking switching capacity
• 17.86 Mpps forwarding rate @ 64-byte packets
• 4K MAC address table with 4 MB buffer memory
• Supports 9.6K jumbo frames
• IEEE 802.3af/at PoE on ports 1–8, up to 30 W per port
• Total PoE power budget up to 130 W
• Built-in AC power supply (100–240 V, 50/60 Hz)
• LED indicators for power, link/activity, PoE, SFP, and gigabit speed
• Desktop, wall-mount, and 19" 1U rack-mount installation
• 4 KV lightning protection with IP30 protection level
• Certified: CCC, CE, FCC, RoHS
