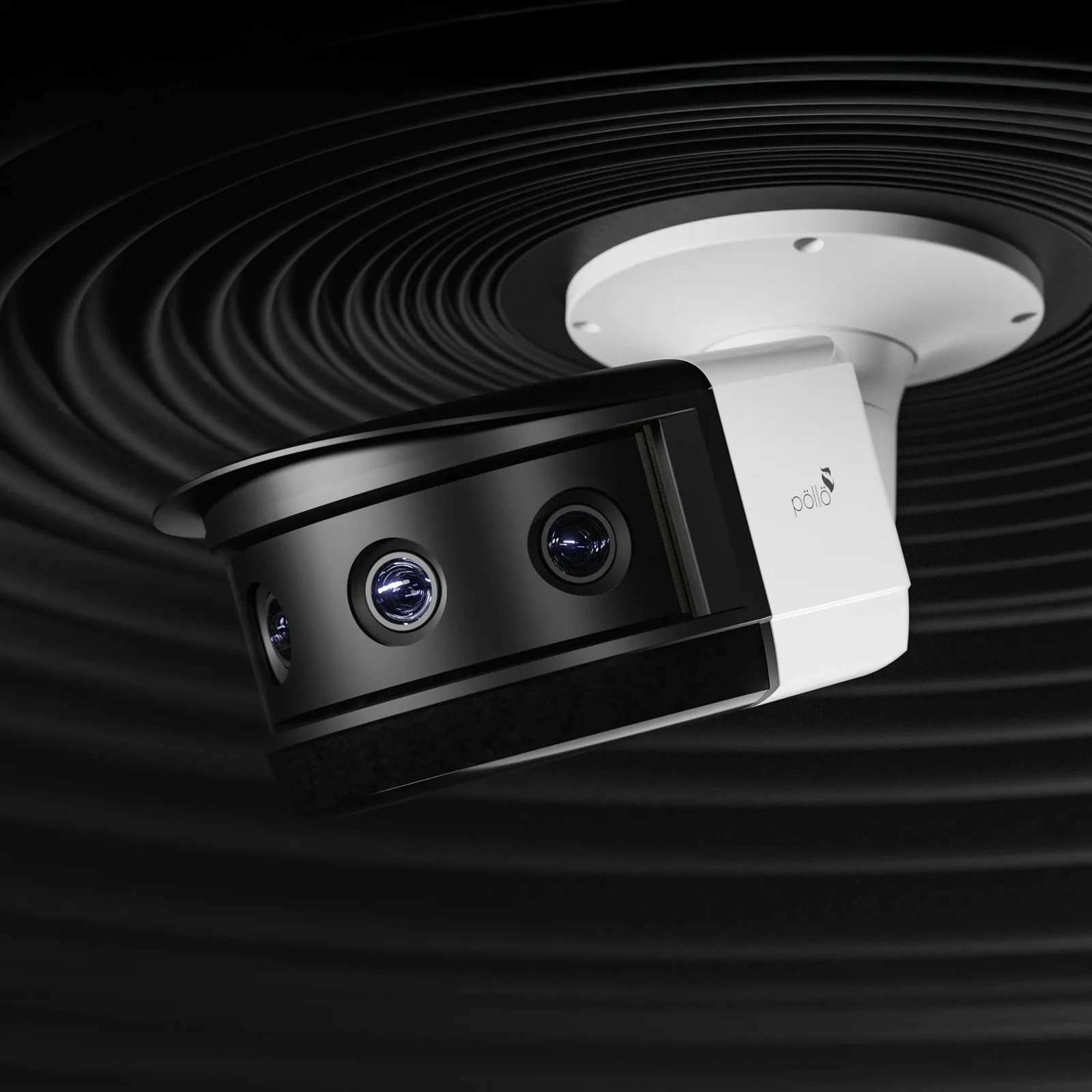

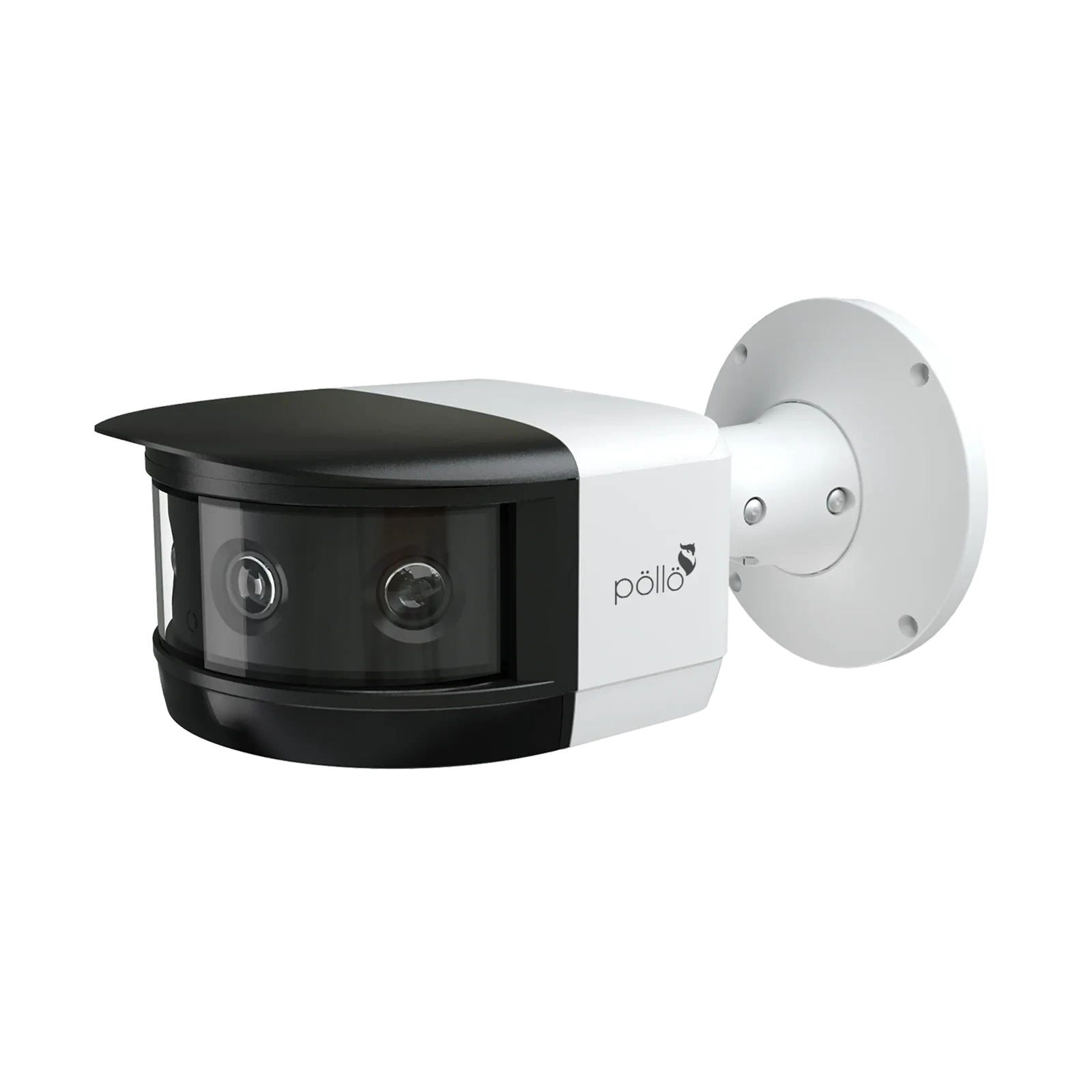

16 Megapixel 180° Panoramic Network Camera

Name: 16 Megapixel 180° Panoramic Network Camera
Brand: Pollo

Four 4MP modules stitched into a 16MP panoramic stream (5520 × 2400) · True Starlight technology delivers vivid color images in very low light · 30 m Smart IR ensures clear and uniform black-and-white images

Buying for your business? Apply for a trade account

Product overview

• Four 4MP modules stitched into a 16MP panoramic stream (5520 × 2400)
• True Starlight technology delivers vivid color images in very low light
• 30 m Smart IR ensures clear and uniform black-and-white images
• Supports DWDR, 3D DNR, BLC, and HLC for improved image clarity.
• Covers up to 7,800 m² for crowd monitoring and activity recording.
• Detects up to 100 faces per second within a 278 m² area.
• Alarms triggered by crowd density limits, mask status, line crossing, intrusion.
• Supports 5 e-PTZ zones, 4 privacy mask zones, and custom logo overlay.
• ONVIF compliant for interoperability with third-party systems.
• IP67 waterproof, IK10 vandal-resistant
• Metal housing; operates from -30 °C to 60 °C.
• One IP, one cable design
• supports PoE+ (802.3at, Class 3) and DC 12V power.
• Interfaces include RJ45, SD card, alarm I/O, audio, and RS485

Technical specifications

BLC	Yes
HLC	Yes
Audio	Interface 1CH audio input, 2 to 2.4v[p-p] 1kΩ±10%; 1CH audio output (line out), impedance:
Defog	Electronic
Focus	length 4.5mm lens x 4
Model	PLN-4216M-AI-PN-IR3/PM
Weight	Approx. 2.1Kg(4.63lb)
Network	Interface 1 RJ45 10M/100M/1000MAdaptive Ethernet (Support PoE 802.3.at)
Storage	condition -40°C ~ 70°C; ≤ 95%RH
Dimensions	L x W x H = 288.4mm x 159.7mm x 137.7mm (11.35” x 6.29”x 5.42”)
