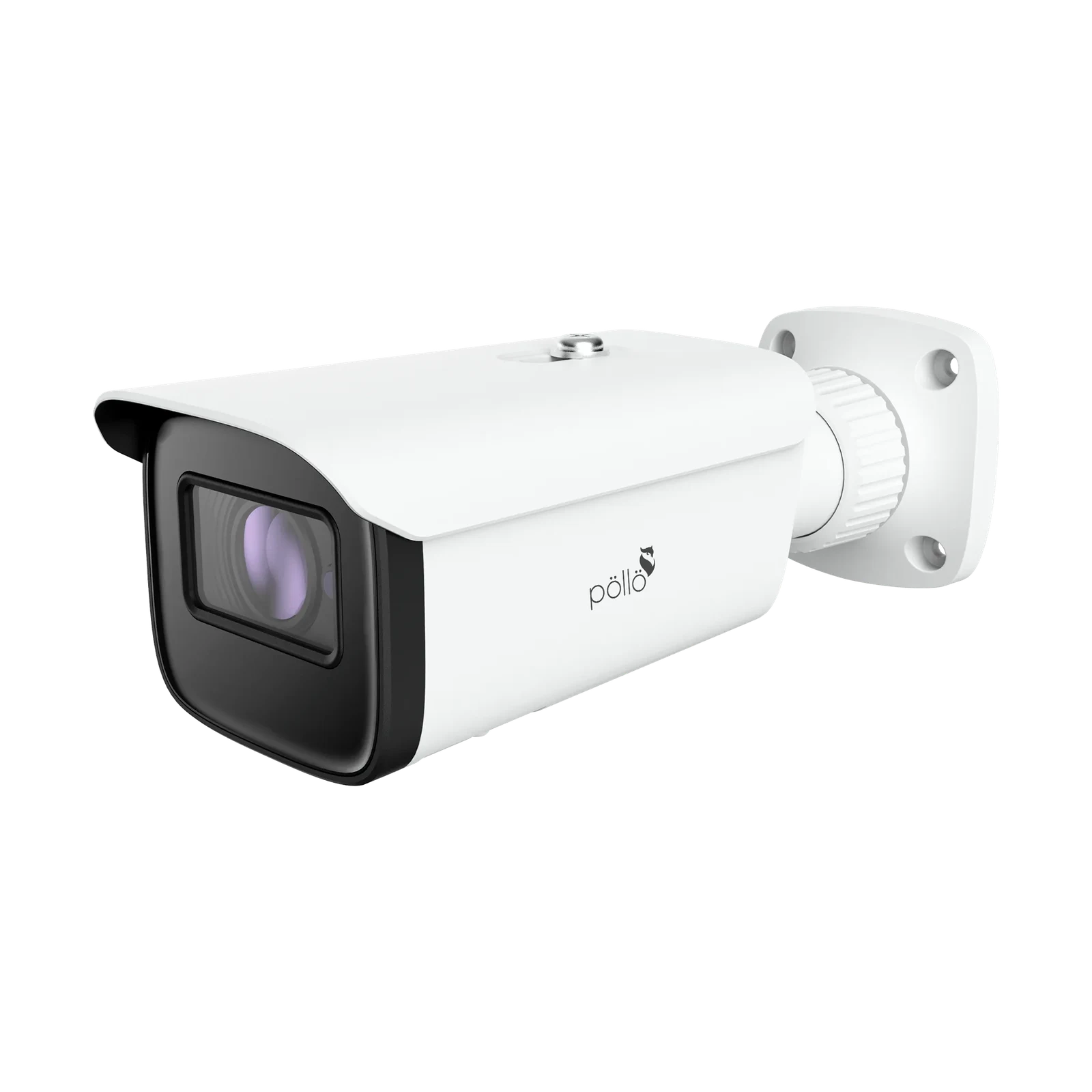

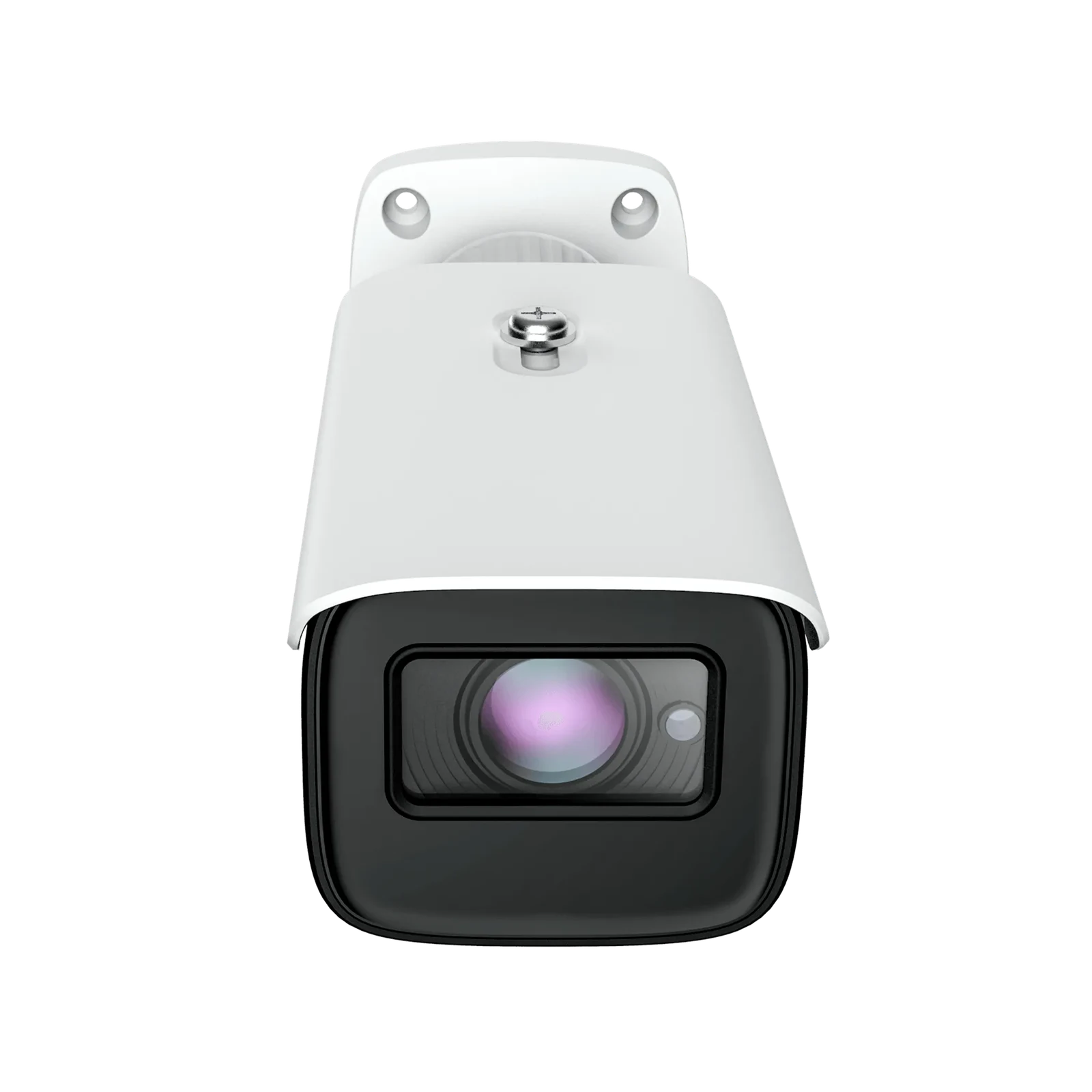

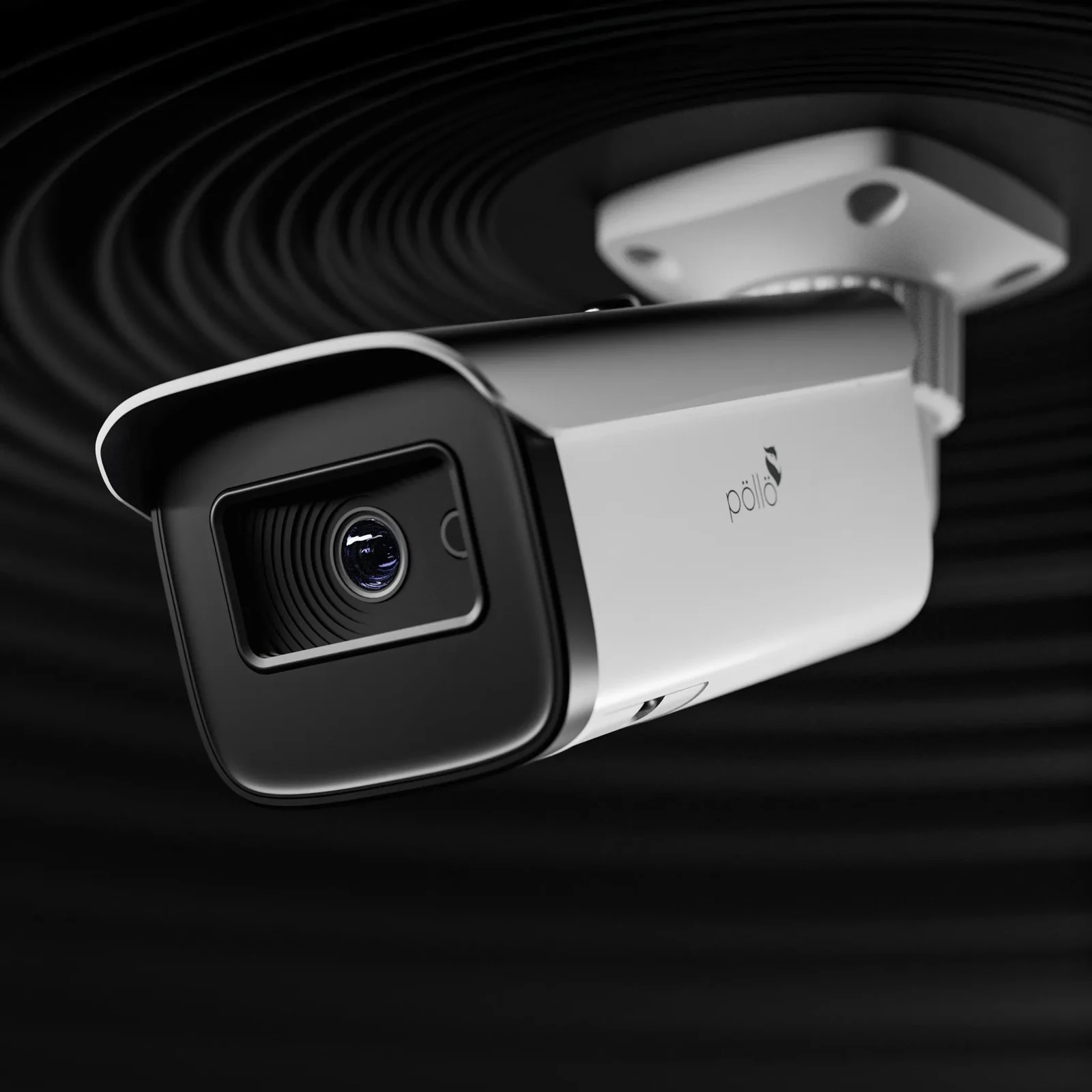

5 Megapixel Network Bullet Motorized Camera

Name: 5 Megapixel Network Bullet Motorized Camera
Brand: Pollo

1/2.7 " CMOS Image Sensor · 2592 × 1944 Pixels (3K) Resolution · 0.008 Lux Min. Illumination for Day Time Color View

Buying for your business? Apply for a trade account

Product overview

• 1/2.7 " CMOS Image Sensor
• 2592 × 1944 Pixels (3K) Resolution
• 0.008 Lux Min. Illumination for Day Time Color View
• 50-meter IR Night View Range @ 0 Lux
• Motion Detection Alarm Trigger
• 4x Optical Zoom with 2.8~12mm Varifocal Lens
• Line Crossing Detection
• Region Intrusion Detection
• Highlight Compensation for Image Correction
• Backlight Compensation for Image Correction
• ONVIF Protocol Supported
• IP67 Water & Dust Proofing
• DC12V/ PoE (IEEE802.3af) Power Supply

Technical specifications

BLC	Yes
HLC	Yes
PoE	Yes, IEEE802.3af
ROI	Each ROI to be configured separately
Lens	2.8~12mm@F1.4, motorized
Audio	1CH audio input
Defog	Yes
Model	PLC-425M-MZ-IR5/PM
Reset	Yes
Network	RJ45
Storage	Network remote storage; micro-SD card storage
Bit Rate	64 Kbps ~ 8 Mbps
Iris Type	Fixed Iris
Digital NR	3D DNR
Image Size	2592 × 1944
Lens Mount	Ø14
Resolution	5MP (2592 × 1944), 4MP (2592 × 1520), 2K (2560 × 1440), 3MP (2304 ×
Sub Stream	720P/D1/CIF/480x240 (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
IR Distance	30 ~ 50 m
Main Stream	5MP/4MP/2K/3MP/1080P / 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Smart Alarm	Motion detection, SD card error, SD card full, IP address conflict,
Image Sensor	1 / 2.7" CMOS
Installation	Ceiling mounting; Wall mounting
Power Supply	DC12V/PoE
Video Output	No
Weight (net)	Approx. 0.65KG
Bit Rate Type	VBR / CBR
Image Settings	ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen,
Dimensions (mm)	217.7 × 80.5 × 80.5
Angle Adjustment	Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°
General Function	Watermark, IP address filtering, video mask, heartbeat, password
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, FTP,
Min. Illumination	0.008 lux@F1.4, AGC ON; 0 lux with IR
Online Connection	Support simultaneous monitoring for up to 10 users; Support multi-stream real
Power Consumption	< 11W
Remote Monitoring	Web browsing, CMS remote control
Video Compression	Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
Electronic Shutter	1 / 30 s ~ 1 / 100000 s
Ingress Protection	IP67
Interface Protocol	ONVIF
Wide Dynamic Range	120dB
Operating Environment	- 30 °C ~ 60°C (-22 °F~140°F) E42Humidity: less than 95 % non condensing
