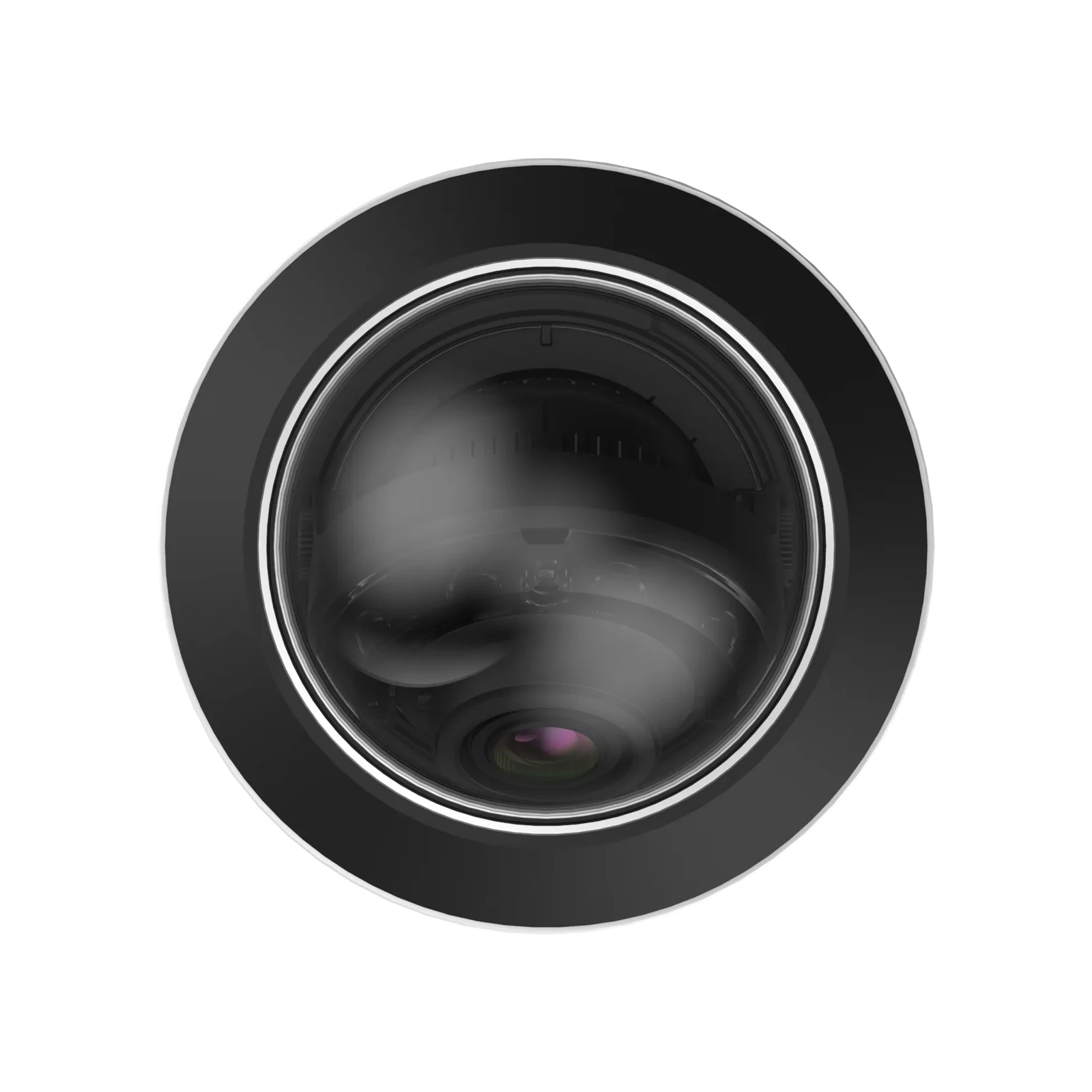

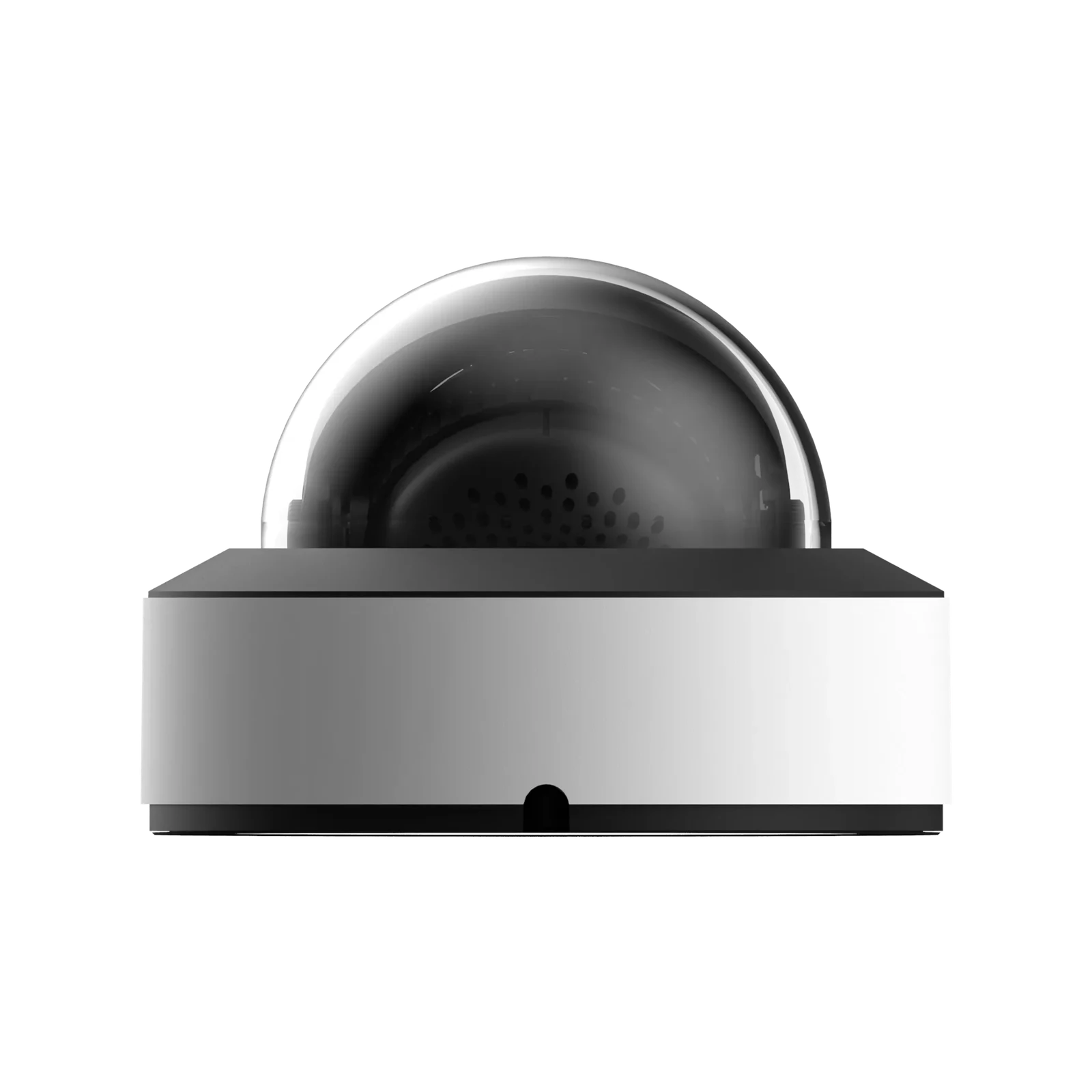

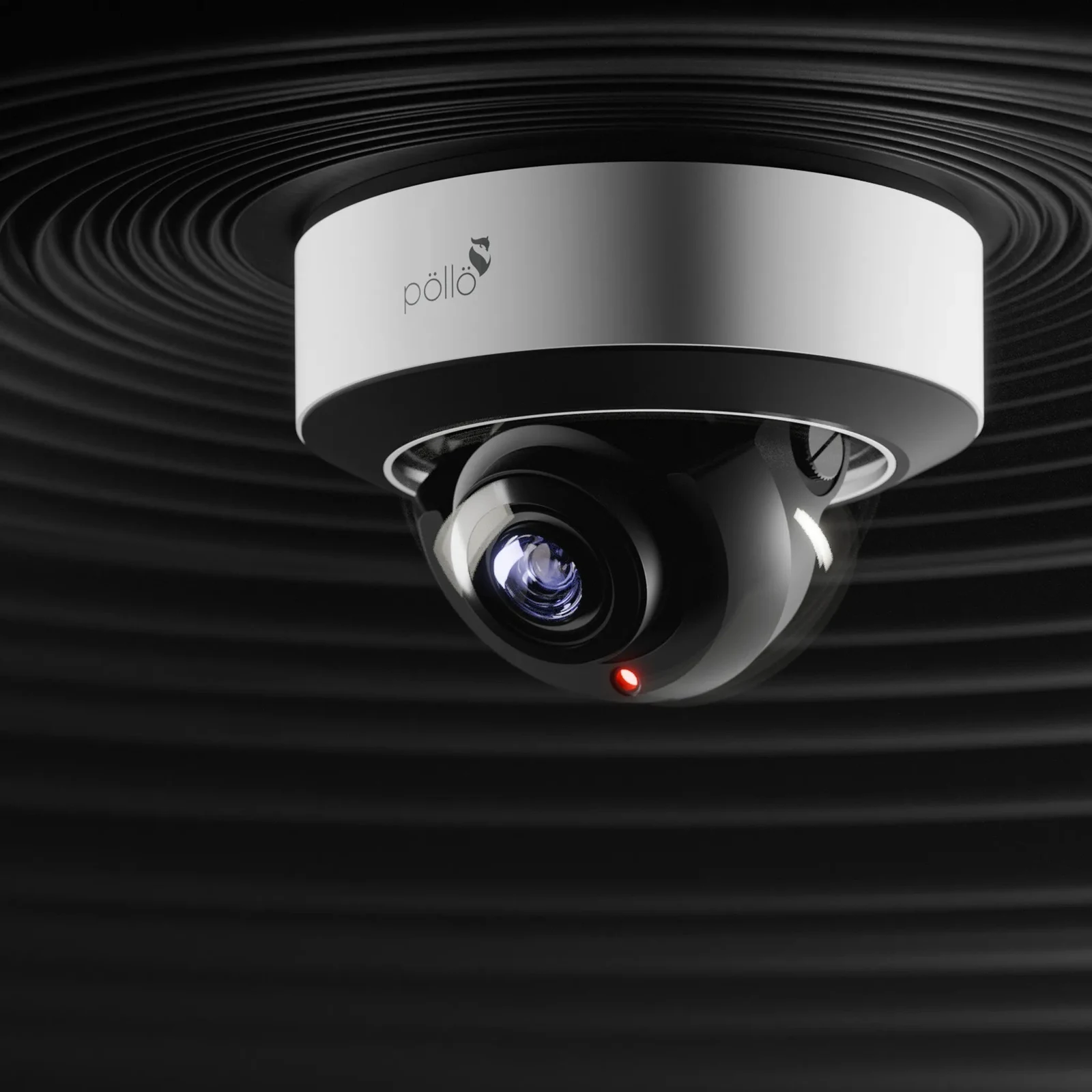

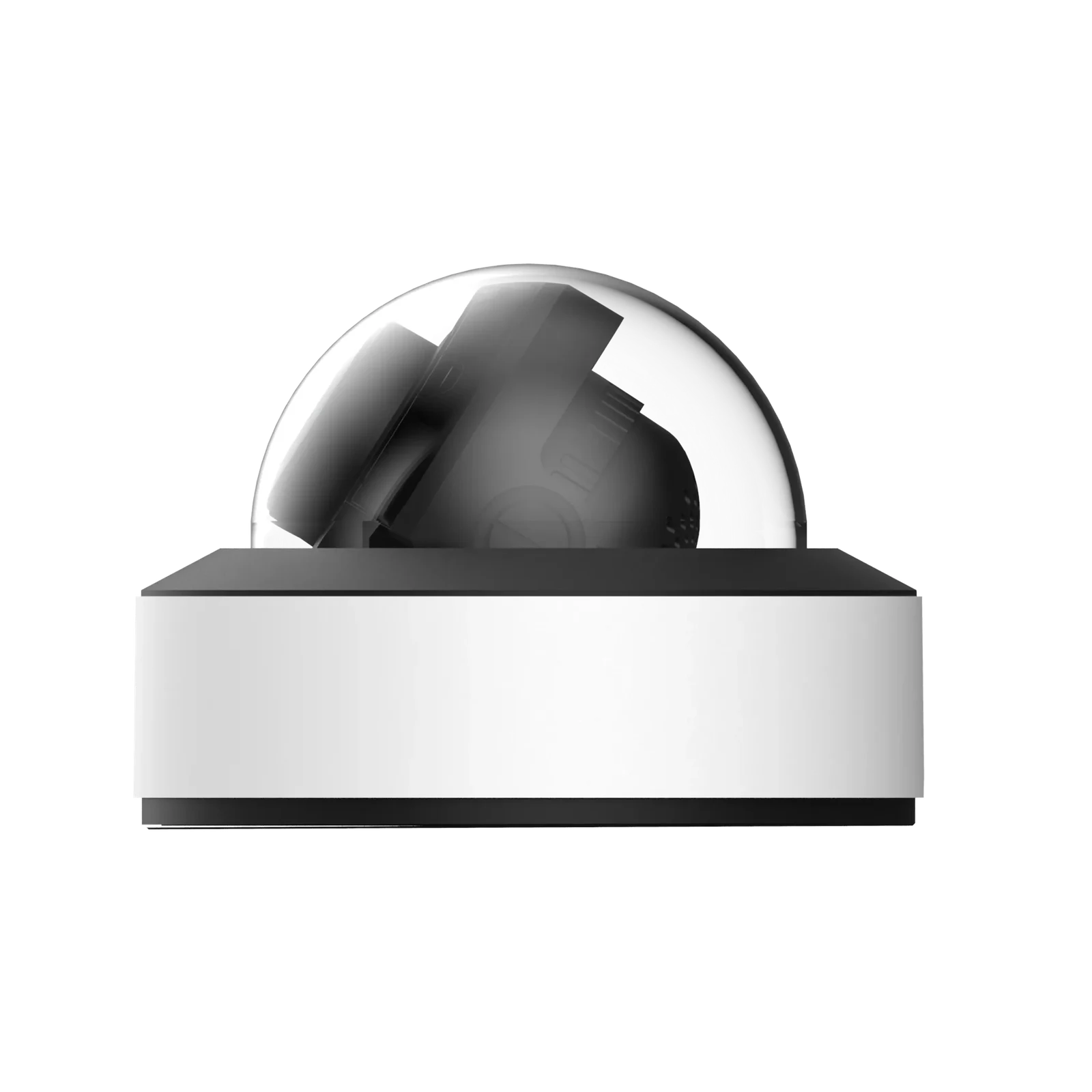

5 Megapixel Network Vandal Proof Dome Camera

Name: 5 Megapixel Network Vandal Proof Dome Camera
Brand: Pollo

1/2.7 " CMOS Image Sensor · 2592 × 1944 Pixels (3K) Resolution · 0.02 Lux Min. Illumination for Day Time Color View

Buying for your business? Apply for a trade account

Product overview

• 1/2.7 " CMOS Image Sensor
• 2592 × 1944 Pixels (3K) Resolution
• 0.02 Lux Min. Illumination for Day Time Color View
• 30-meter IR Night View Range @ 0 Lux
• Motion Detection Alarm Trigger
• Line Crossing Detection
• Region Intrusion Detection
• Highlight Compensation for Image Correction
• Backlight Compensation for Image Correction
• ONVIF Protocol Supported
• IP67 Water & Dust Proofing
• IK10 Vandal Proofing
• DC12V/ PoE (IEEE802.3af) Power Supply

Technical specifications

BLC	Yes
HLC	Yes
ROI	Each ROI to be configured separately
Lens	2.8 mm@F1.6, horizontal FoV: 99.87°; vertical FoV: 70.36°; diagonal FoV:120°
Audio	1CH audio input; 1 CH built-in MIC
Defog	Yes
Focus	Fixed
Model	PLC-435M-AUK-IR3/PM
Reset	Yes
Network	RJ45
Storage	Built-in micro-SD card slot; up to 256GB
Bit Rate	64 Kbps ~ 8 Mbps
Iris Type	Fixed Iris
Digital NR	3D DNR
Image Size	2592 × 1944
Lens Mount	M12
Resolution	5MP (2592×1944), 4MP (2592×1520), 2K (2560×1440), 3MP
Sub Stream	720P/D1/CIF/480×240 (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Main Stream	5MP/4MP/2K/3MP/1080P / 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Image Sensor	1 / 2.7 "CMOS
Installation	Ceiling mounting; Wall mounting
Video Output	No
Weight (net)	Approx. 0.65KG
Bit Rate Type	VBR / CBR
Image Settings	ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image
Angle Adjustment	Pan: 0°~355°, Tilt: 0°~67°, Rotation: 0°~355°
Min. Illumination	0.02 lux@F1.6, AGC ON; 0 lux with IR
Online Connection	Support simultaneous monitoring for up to 10 users; Support multi-stream
Remote Monitoring	Web Browser/PVMS Plus/NVR/mobile APP
Electronic Shutter	1 /3s ~ 1 / 100000 s
Wide Dynamic Range	120dB
